Descriere

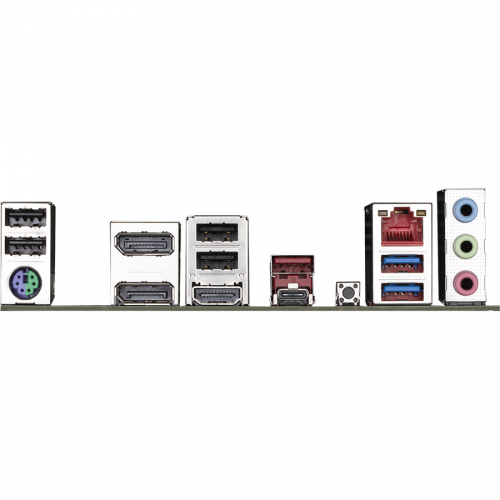

B650M DS3H | Socket AM5 | 4 x DDR5 DIMM (up to 128GB) | Audio Realtek® Audio CODEC | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | 1 x PCI Express x16, 1x PCI Express x1| 2 x M.2 Socket, 4 x SATA 6Gb/s | RAID 0, RAID 1, RAID 5, RAID 10 | 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x DisplayPorts, 1 x HDMI port, 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x Q-Flash Plus button, 1 x RJ-45 port, 2 x USB 3.2 Gen 1 ports, 3 x audio jacks | Micro ATX
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with RealtekChipset audioRealtekRAID0, 1, 10Placa video integrataNecesita procesor cu tehnologia AMD Radeon GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek 2.5GbE LANBIOS256 Mb Flash ROM, UEFI AMI BIOSInterfata graficaPCI Express x16 4.0SATA III4NGFF (M.2)2 -
Procesor
CPU SocketAM5ChipsetB650Producator chipsetAMDProcesoare suportateAMD AM5 Socket Ryzen 7000 Series -
Memorie
Model memorieDDR5Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MHzSloturi memorie4Alte specificatiiSuport pentru AMD EXtended Profiles for Overclocking (AMD EXPO) -
Conectivitate
HDMI1DisplayPort2RJ-451USB 2.04USB 3.2 Gen1 tip A2USB 3.2 Gen2 tip A1USB tip C1 x USB 3.2 Gen 2 tip CSuport audio7.1Audio jacks3PS/2 Combo Mouse/Tastatura1BIOS FlashbackDa -
Sloturi
PCI Express 3.01 (x1)PCI Express 4.01 (x16)Header USB 3.0Da -
Specificatii Fizice
FormatmATXDimensiuni (L x l, cm)24.4 x 24.4 cm
