Descriere

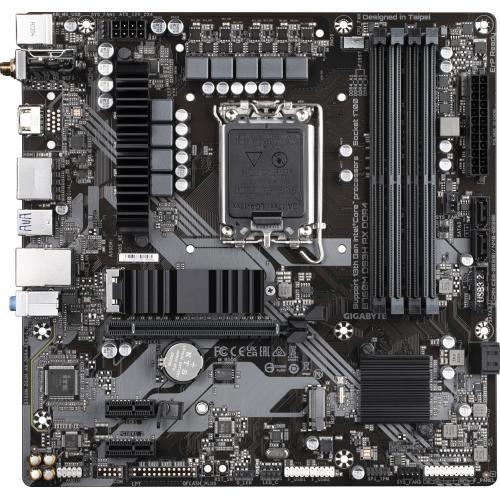

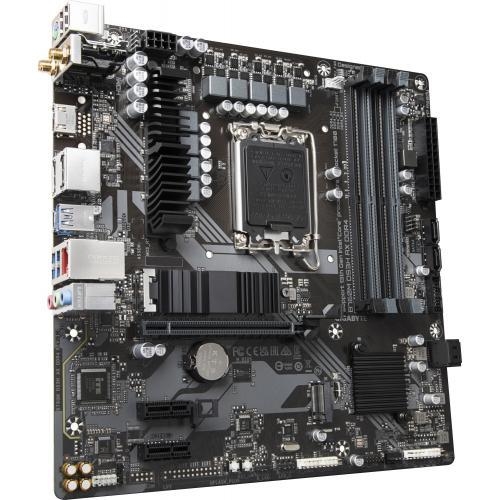

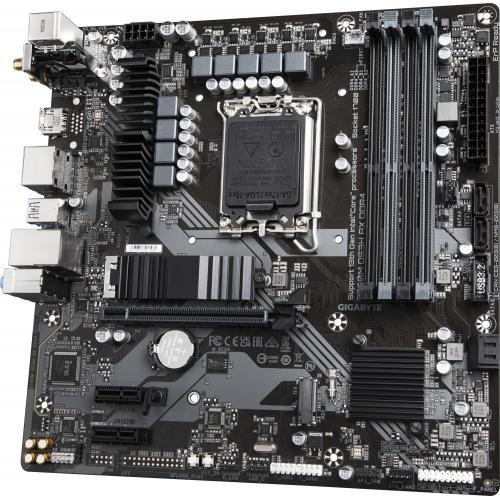

B760M DS3H DDR4 | Socket 1700 | 4x DDR4 DIMM (up to 128GB) | Audio Realtek ALC897 | 1 x Intel 2.5 GbE LAN | 1x PCI Express x16, 2 x PCI Express x1| 2x M.2 Socket 3, 4x SATA 6GB/s | 1 x USB Type-C® , with USB 3.2 Gen2, 3 x USB 3.2 Gen1 , 2 x USB 2.0/1.1, 2 x DisplayPort, 1 x HDMI,1 x RJ-45, 3 x audio jacks | Micro-ATX 24.4cm x 24.4cm
Specificatii produs
-
General
Recomandat GamingDaPlaca audio integrata7.1 Audio with RealtekChipset audioRealtekRAID0, 1, 5, 10Placa video integrataNecesita procesor cu tehnologia Intel HD GraphicsPlaca retea integrata10/100/1000/2500 MbpsChipset reteaRealtek 2.5GbE LANBIOS128Mb AMI UEFI BIOSInterfata graficaPCI Express x16 4.0SATA III4NGFF (M.2)2 -
Procesor
CPU Socket1700ChipsetB760Producator chipsetIntelProcesoare suportateIntel 12/13th Generation Core/Pentium Gold/Celeron -
Memorie
Model memorieDDR4Capacitate maxima memorie RAM128 GBTehnologieDual channelFrecvente suportate5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHzSloturi memorie4 -
Conectivitate

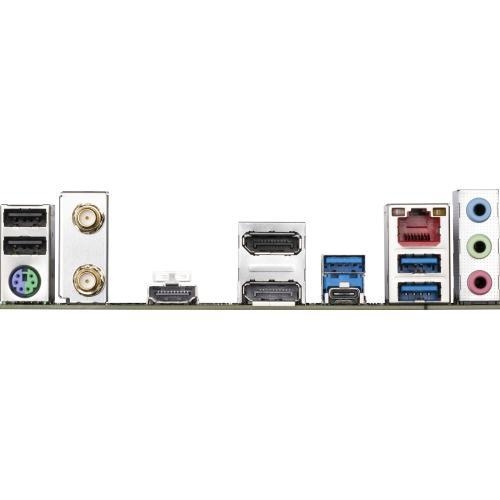

VGA1HDMI1DisplayPort2RJ-451USB 2.02USB 3.2 Gen1 tip A3USB tip C1x USB 3.2 Gen 2 Tip-CAudio jacks3PS/2 Combo Mouse/Tastatura1BIOS FlashbackDa -
Sloturi
PCI Express x12PCI Express 4.01 (x16)Header USB 3.0Da -
Specificatii Fizice
FormatmATXDimensiuni (L x l, cm)24.4 x 24.4 cm
